•  Heat transfer machine- Flat face/ Circle face using

    Price:   $2,800.00  $2,188.00-22%

    • Model: SJ-HF/R2015
    • Shipping Weight: 420kg
    • 87 Units in Stock
    • Manufactured by: SJ-CHINA

    (complete orders today,deliverd around 28/04/2024)
    New Products
    Ceramic ring (single side and middle blade)
    Ink cup for pad printer (inner dia:Ø120mm)
    Shuttle workbench (two position) for printer or other equipment
    Ink cup for pad printer (inner dia:Ø110mm)

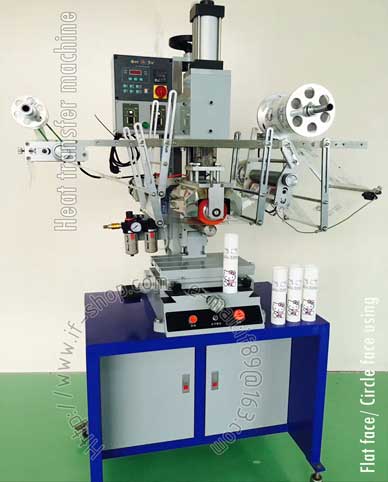

    Heat transfer machine- Flat face/ Circle face using    ---- SJ-HF/R2015
    ■ parameter
    Rubber Roller Size L200mm* ø100mm
    Work max Length 200mm
    Work max Diameter ø150mm
    Heat Print Temperature Range Room 0-280°C
    Heat transfer film Max width 250mm
    Max work speed 800pcs/Hr
    Power supply 220v/110v 50/60Hz
    Heat wattage 2500w
    Air source pressure 6Bar
    Body Dimension L550*W1355*H1798mm
    Package Dimension L810*W1300*H1950mm
    Net weight 332kg
    Package weight 420kg
    ■ comment:

    1. Stamping pressure, temperature, speed can be adjusted.

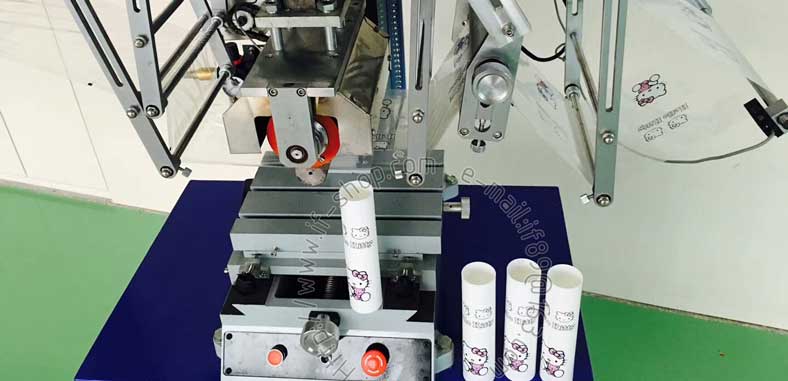

    2. Worktable can be manually move back and forth and rotate adjustment.

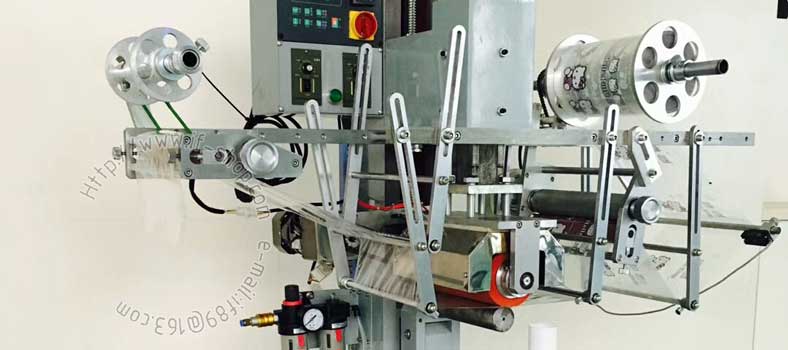

    3. Automatic thermal transfer film feeder can be adjusted.

    4. Adjustable transferring time for thermal transfer film.

    5.Adjustable printing height,pressure, temperature and speed.

    6. Using lubricating device to make shuttle more stable during stamping process.

    7.Advanced safety features.
