IF Brand Precise displacement workbench, Use widely in industrial applications.
Such as Precision moving position correction; Laser moving; Testing adjustment; Optical alignment; Optical fiber tuning; Equipment fixture; University research unit for experiment and so on.
 |
 |
 |
|
SPECIFICATION |
||||
|
MODEL |
FGSX40-40-L |
FGSX40-60-L |
FGSY40-40-L |
|
|
Movement Direction |
Rotation in the X Direction |
Rotation in the X.Y Directionl | ||
|
Body Material |
High-pressure Aluminum ( black) |
|||
|
Drive mode |
Worm and worm gear drive |
|||
|
Table size |
40x40mm |
|||
|
Table thickness |
20mm |
20mm |
40mm |
|
|
stroke |
±10 ° |
±6 ° | (UP) ±10 ° / ( Down) ±6 ° | |
|
workbench load |
28N(3kgf) |
|||
|
Center Height |
40±0.2mm |
60±0.2mm | 40±0.4mm | |
|
Weight |
0.13kg |
0.13kg |
0.26kg |
|
| Using Guide type | Cross roller guide form | |||
|
SPECIFICATION |
||||
|
MODEL |

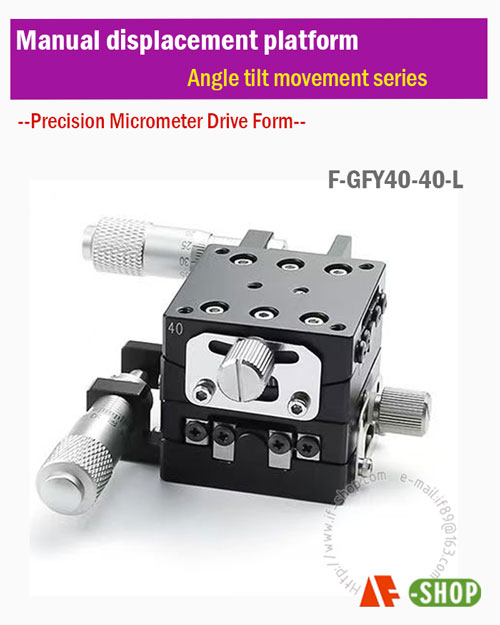

FGFX40-40-L |
FGFX40-60-L |
FGFY40-40-L |
|
|
Movement Direction |
Rotation in the X Direction |
Rotation in the X.Y Directionl | ||
|
Body Material |
High-pressure Aluminum ( black) |
|||
|
Drive mode |

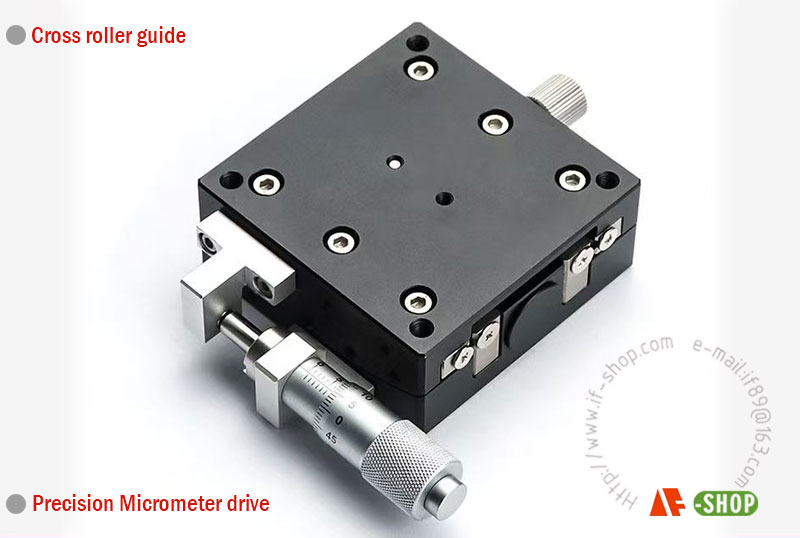

Micrometer drive |
|||
|
Table size |
40x40mm |
|||
|
Table thickness |
20mm |
40mm |
||
|
stroke |
±7° |
±6° | (UP) ±7° / ( Down) ±6 ° | |
|
workbench load |
28N(3kgf) |
|||
|
Center Height |
40±0.2mm |
60±0.2mm | 40±0.4mm | |
|
Weight |
0.13kg |
|||
|
SPECIFICATION |
||||
|
MODEL |
FGSX60-50-L |
FGSX60-75-L |
FGSY60-50-L |
|
|
Movement Direction |
Rotation in the X Direction |
Rotation in the X.Y Directionl | ||
|
Body Material |
High-pressure Aluminum ( black) |
|||
|
Drive mode |
Worm and worm gear drive |
|||
|
Table size |
60x60mm |
|||
|
Table thickness |
25mm |
25mm |
50mm |
|
|
stroke |
±10 ° |
±8 ° | (UP) ±10 ° / ( Down) ±6 ° | |
|
workbench load |
49N(5kgf) |
|||
|
Center Height |
50±0.2mm |
75±0.2mm | 50±0.4mm | |
|
Weight |
0.32kg |
0.32kg |
0.64kg |
|
| Using Guide type | Cross roller guide form | |||
|
|
