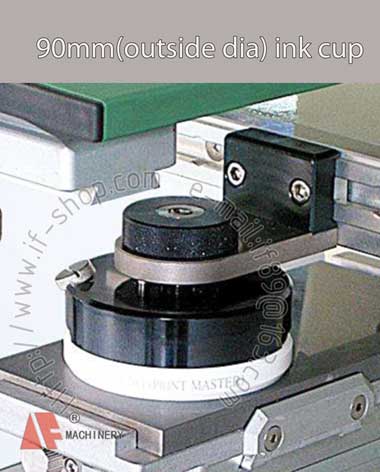

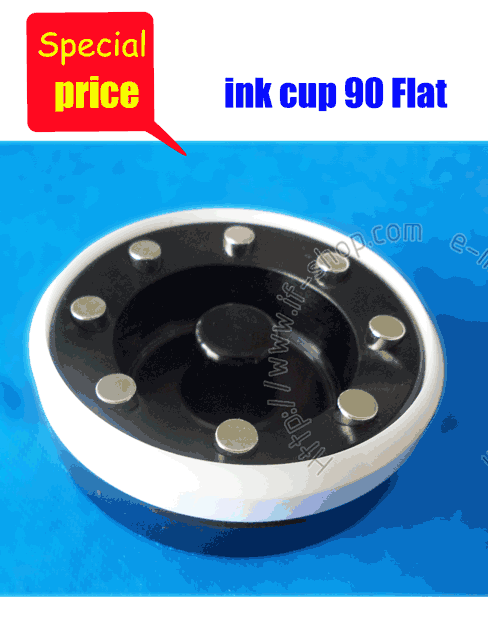

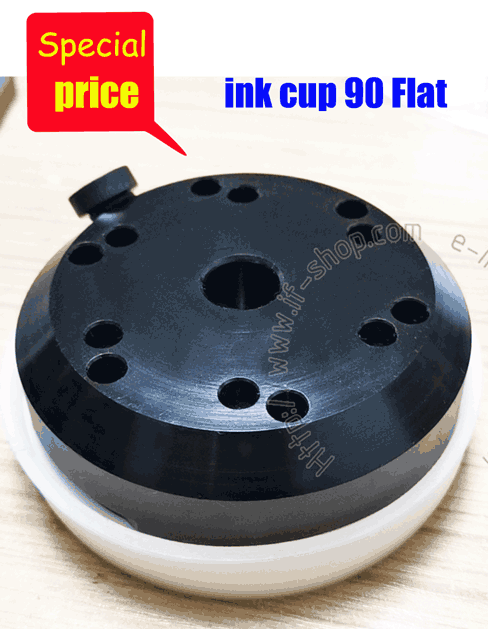

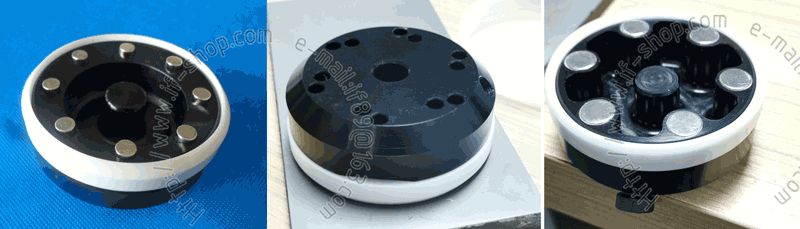

A.Ø90mm( Max outside diameter ) flat INK CUP FOR PAD PRINTER
--General type, environmental protection type
--Effective printable area: Ø80mm<.
--Suitable for all pad printer
--The cup high:33mm
B.Ø80mm( Max outside diameter ) flat INK CUP FOR PAD PRINTER
--General type, environmental protection type
--Effective printable area: Ø70mm<.
--Suitable for all pad printer
--The cup high:33mm (plan to launch)

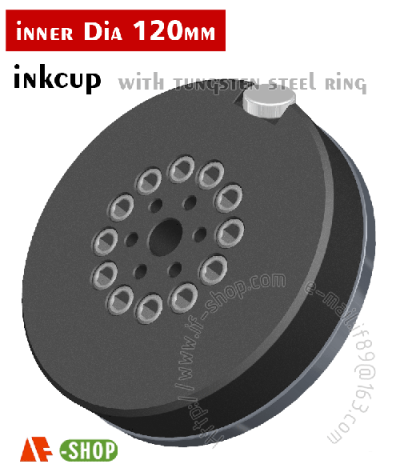

C.Ø120mm( Max outside diameter ) flat INK CUP FOR PAD PRINTER
--General type, environmental protection type
--Effective printable area: Ø110mm<.
--Suitable for all pad printer
--The cup high:33mm
D.Ø150mm( Max outside diameter ) flat INK CUP FOR PAD PRINTER
--General type, environmental protection type
--Effective printable area: Ø140mm<.
--Suitable for all pad printer
--The cup high:33mm (plan to launch)
| NEED TO ORDER yourself SIZE ? Please contact us! |
The ink cup works on any standard pad print machine,such as: pad print system equipment that need print label for production line; Or,replace the open and old ink well system of pad priner with ink cup of environmental protection system.

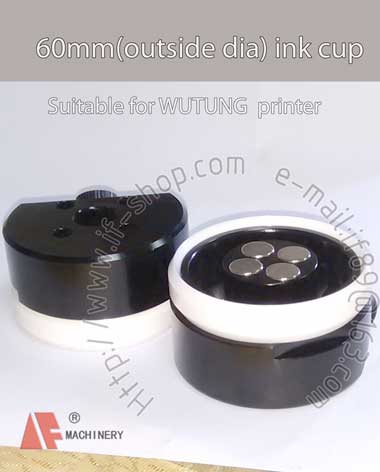

The series ink cup structiure is easy and using is handy, Its adopted positioning screw with elastic top part, and adopts middle and hiding magnetic body structure, so environmental protection and easy cleaning. 90mm and 60mm or ink cup 70mm can interchange according to print area .
The ink cup works on any standard pad print machine,such as: pad print system equipment that need print label for production line; Or,replace the open and old ink well system of pad priner with ink cup of environmental protection system.
