General 2-edge ball mill of solid tungsten carbide

A. comprehensive type;

B.ordinary steel and cast iron and stainless steel;

U.aluminum and copper;

M.difficult-to-machine materials(Titanium alloy/high-temperature alloy);

H.Hardemed material

S. For processing stainless steel;

---This product is made of 0.6um particle size tungsten steel hard alloy raw material, belonging to the special material family for high hardness and high-speed cutting

 *Choose cutting tools based on metal materials:

a. Steel (ordinary steel, stainless steel, mold steel): tungsten steel with high cobalt (Co) content (such as YG8, YG6X) is preferred, with a balance between wear resistance and impact resistance; TiAlN coating can be added to enhance the anti stick cutting ability when processing stainless steel.


b. Aluminum alloy: choose low cobalt (such as YG3X) or cobalt free hard alloy to avoid the reaction between alloy elements and aluminum; TiN (titanium nitride) coating can be selected to reduce friction.


c. Titanium alloy/high-temperature alloy: Ultra fine grain tungsten steel with high hardness and high temperature resistance (such as WC Co alloy), coated with Al ₂ O3 to enhance wear resistance.

d, Cast iron: Made of YG hard alloy (such as YG6), with moderate cutting speed to avoid chipping.

*non-metallic materials

Plastic/Wood: Ordinary hard alloy can be used, but it is recommended to choose a round nose knife or a large front angle design to reduce vibration.

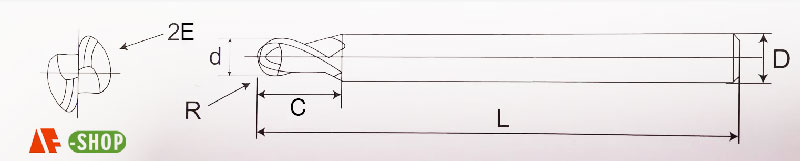

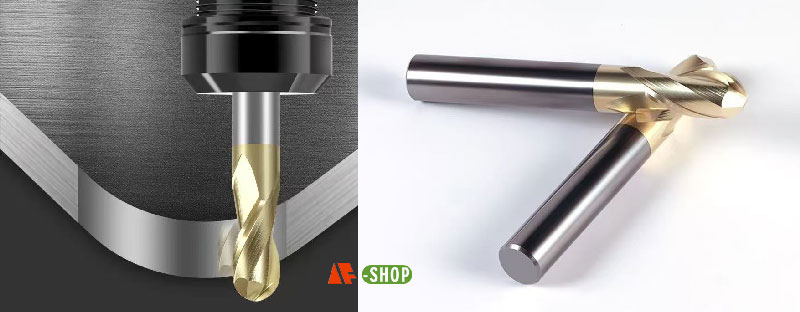

General 2-edge ball mill of solid tungsten carbide (as above picture)

 Our end mill material parameter:
WC=90/88 Co=10/12 HV30=1572  Resistant to bending=3750N/mm2   Hardness>=91.5/92   particle size=0.6um
