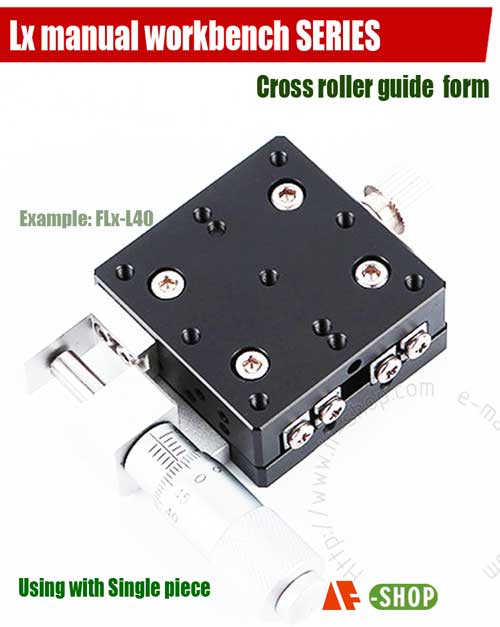

• Manual workbench parallel adjustable series LX(Y) 40mm

    Price:   $42.00

    • Model: FXY40 Serise(bench area40mm)
    • Shipping Weight: 0.6kg
    • 88 Units in Stock
    • Manufactured by: IF MACHINERY


    Please Choose:

    color
    Material

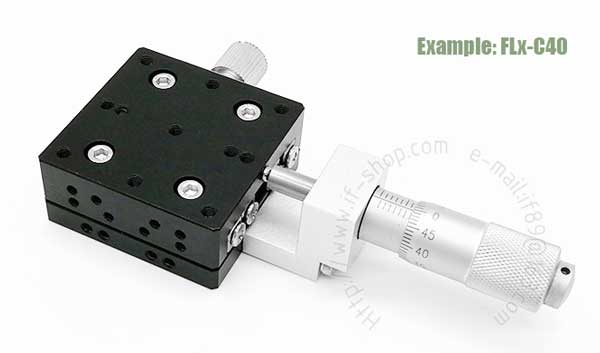

    • FLX-C40

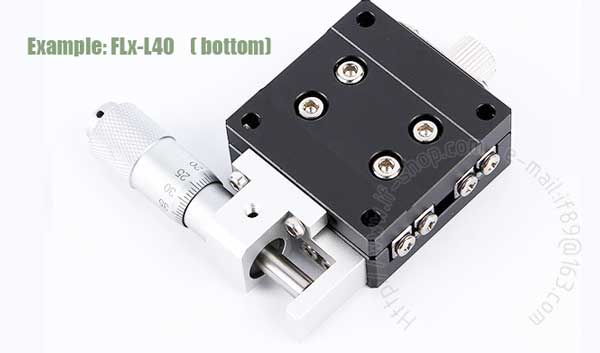

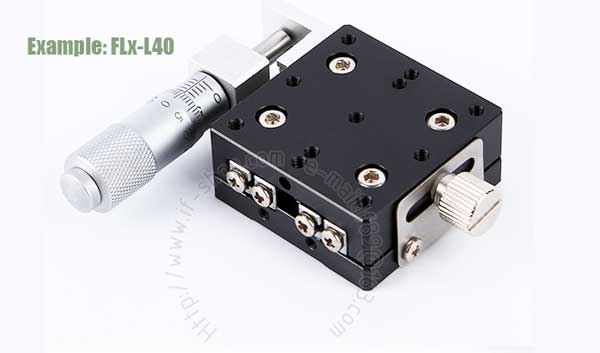

    • FLX-L40

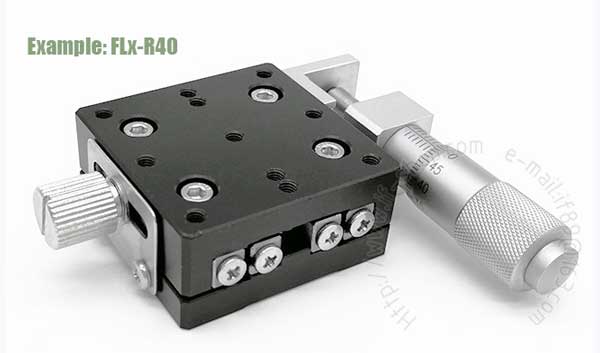

    • FLX-R40

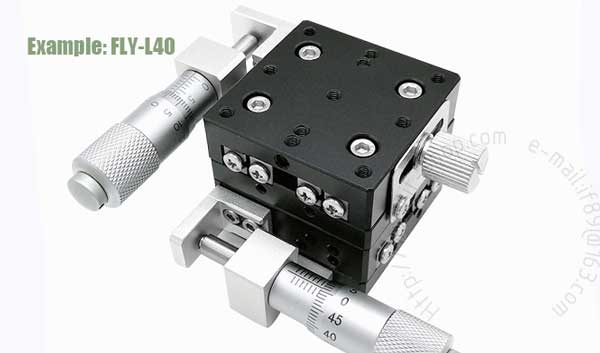

    • FLY-L40 (+0.35kg)
    • FLY-R40 (+0.35kg)
    -+
    (complete orders today,deliverd around 27/07/2024)
    New Products
    Vertical Angle rotation workbench series
    $146.00
    (inner dia:Ø180mm) ink cup for large area pad print
    $360.00
    Tungsten carbide steel ring for tampo ink cup pad printer
    $38.00  $30.40-20%
    Tungsten carbide steel ring for tampo ink cup
    $38.00  $30.40-20%
    Details

     IF Brand Precise displacement workbench series, Use widely in industrial applications. Such as Precision moving position correction; Laser moving; Testing adjustment; Optical alignment; Optical fiber tuning; Equipment fixture; University research unit for experiment and so on. High precision and smooth movement can be achieved by using cross roller guide. The main materials is aluminium alloy, light weight, suitable for all other devices.All this series workbench with quality-material,high advance manufacturing technology, Full testing for ensure all kind of our products precision higher than our industry standard. IF MACHINERY will supply our comprehensive products with price, over your expected is our business purpose.

     Give us advice and ideas












    SPECIFICATION

    MODEL

    IFLX-L40

    IFLX-R40

    IFLX-C40

    IFLY-L40
    IFLY-R40

    IFLY-C40

    Movement
    Direction

    X Horizontal parallet

    X.Y Horizontal parallet

    Body
    Material

    High-pressure Aluminum ( black)

    Drive mode

    Micrometer

    Table size

    40x40mm

    40x40mm

    40x40mm

    40x40mm

    Table thickness

    18mm

    18mm

    36mm

    36mm

    stroke

     ±6.5mm

    workbench
    load

    29.4N
    (3kgf)

    29.4N
    (3kgf)
    29.4N
    (3kgf)

    Parallelism of movement

    ≦0.001mm

    Micrometer
    unit

    0.01mm

    0.01mm

    0.01mm

    0.01mm

    Parallelism

    0.01mm

    0.01mm

    Weight

    0.35kg

    0.35kg 0.7kg

    0.7kg

    Levelness 0.02mm 0.02mm 0.02mm 0.04mm

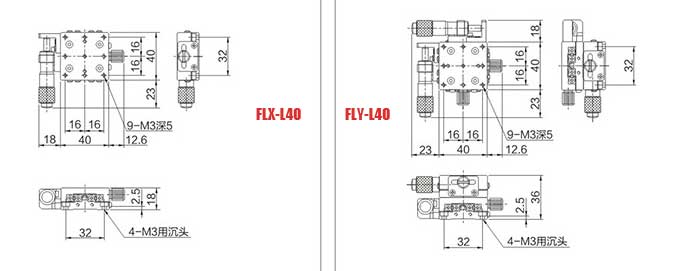

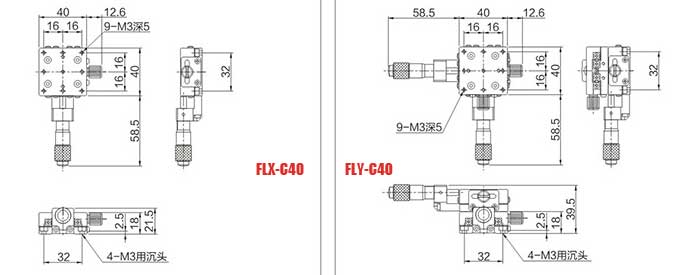

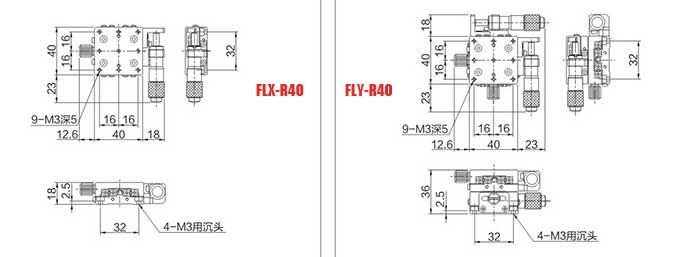

    FLX(Y)-40 Series
