IF Brand Precise displacement workbench, Use widely in industrial applications.
Such as: Precision moving position correction; Laser moving; Testing adjustment; Optical alignment; Optical fiber tuning; Equipment fixture; University research unit for experiment and so on.
All this series workbench with quality-material,high advance manufacturing technology, Full testing for ensure all kind of our products precision higher than oure industry standard. IF MACHINERY will supply our comprehensive products with price, over your expected is our business purpose.
IF All this series workbench of the same size in the same series can be combined with each other in the X Y Z R direction to complete various displacement tasks you want and achieve unexpected results.
 |
 |
 |
 |
|
SPECIFICATION (A) |
||||
|
MODEL |

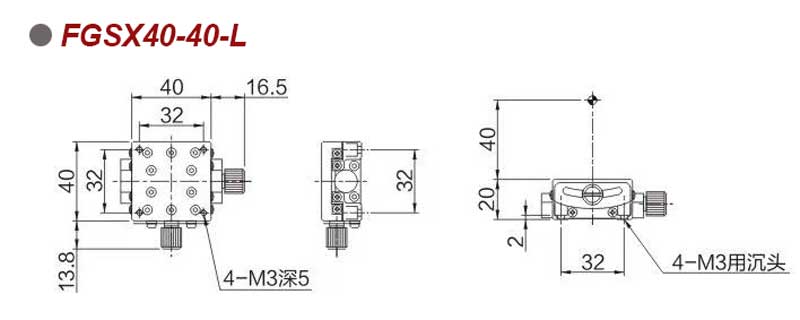

FGSX40-40-L |

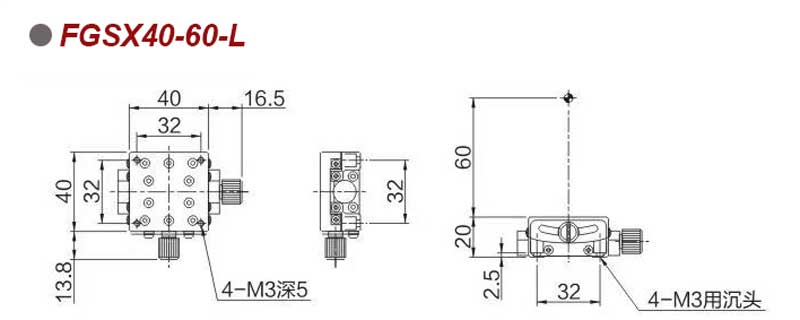

FGSX40-60-L |

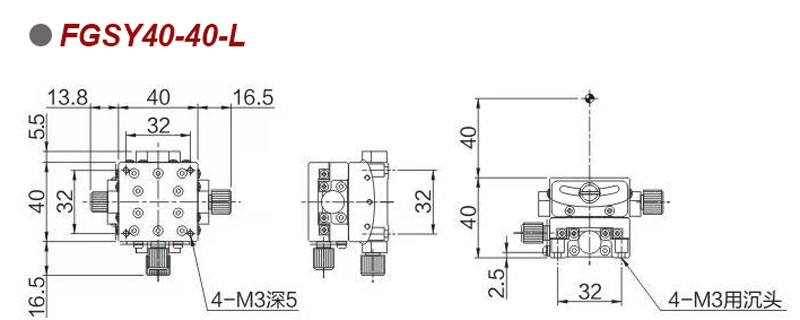

FGSY40-40-L |
|
|
Movement Direction |
Rotation in the X Direction |
Rotation in the X.Y Directionl | ||
|
Body Material |
High-pressure Aluminum ( black) |
|||
|
Drive mode |
Worm and worm gear drive |
|||
|
Table size |
40x40mm |
|||
|
Table thickness |
20mm |
20mm |
40mm |
|
|
stroke |
±10 ° |
±6 ° | (UP) ±10 ° / ( Down) ±6 ° | |
|
workbench load |
28N(3kgf) |
|||
|
Center Height |
40±0.2mm |
60±0.2mm | 40±0.4mm | |
|
Weight |
0.13kg |
0.13kg |
0.26kg |
|
| Using Guide type | Cross roller guide form | |||
|
SPECIFICATION (B) |
||||
|
MODEL |

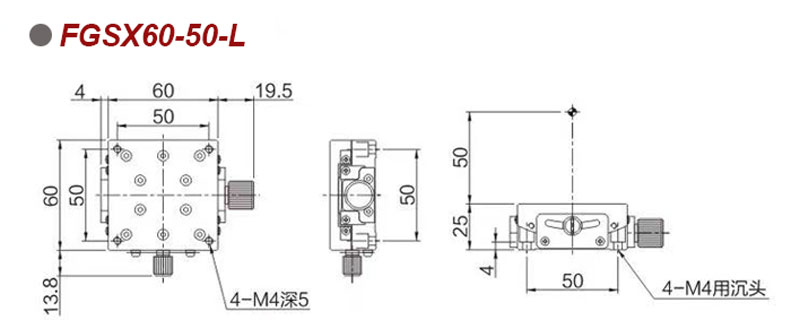

FGSX60-50-L |

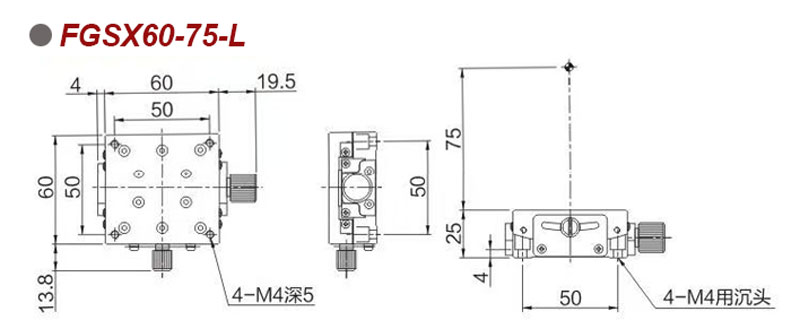

FGSX60-75-L |

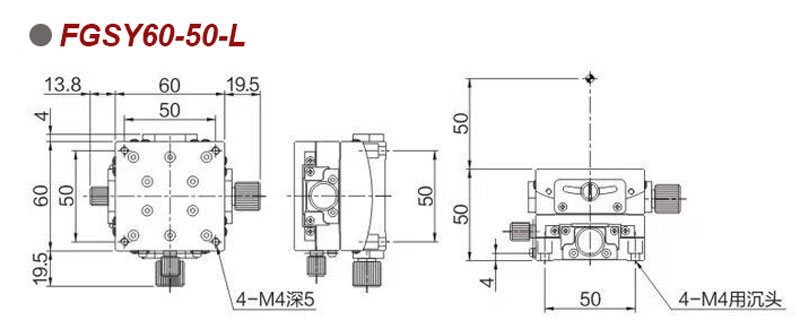

FGSY60-50-L |
|
|
Movement Direction |
Rotation in the X Direction |
Rotation in the X.Y Directionl | ||
|
Body Material |
High-pressure Aluminum ( black) |
|||
|
Drive mode |
Worm and worm gear drive |
|||
|
Table size |
60x60mm |
|||
|
Table thickness |
25mm |
25mm |
50mm |
|
|
stroke |
±10 ° |
±8 ° | (UP) ±10 ° / ( Down) ±6 ° | |
|
workbench load |
49N(5kgf) |
|||
|
Center Height |
50±0.2mm |
75±0.2mm | 50±0.4mm | |
|
Weight |
0.32kg |
0.32kg |
0.64kg |
|
| Using Guide type | Cross roller guide form | |||
