• Manual workbench parallel adjustable series LX(Y) 80mm

    Price:   $68.00

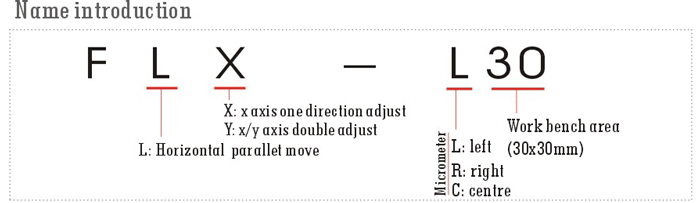

    • Model: FXY80 Serise(bench area-80mm)
    • Shipping Weight: 0.6kg
    • 68 Units in Stock
    • Manufactured by: IF MACHINERY


    Please Choose:

    color
    Material

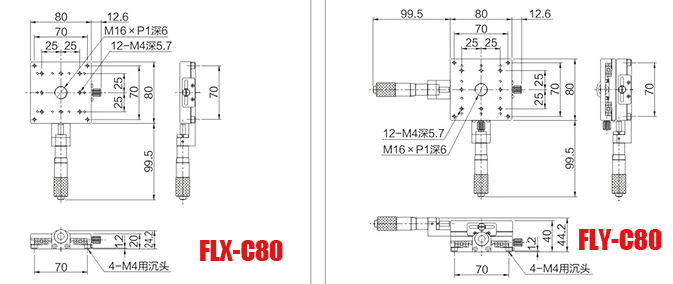

    • FLX-C80

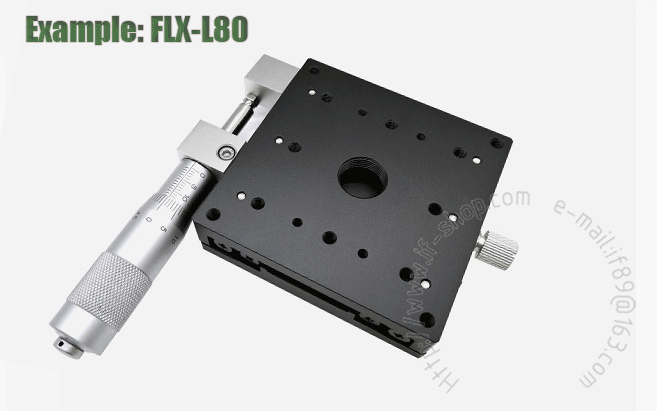

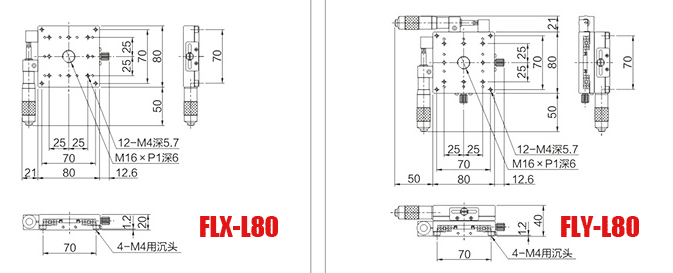

    • FLX-L80

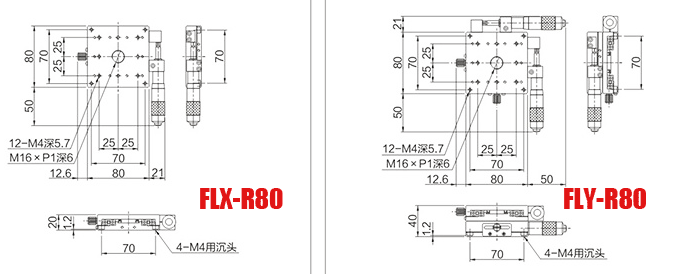

    • FLX-R80
    • FLY-C80 (+0.6kg)

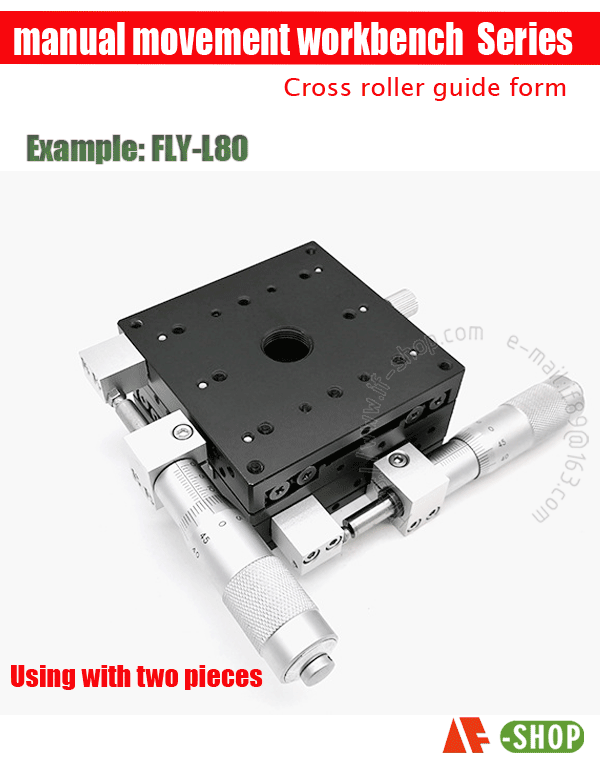

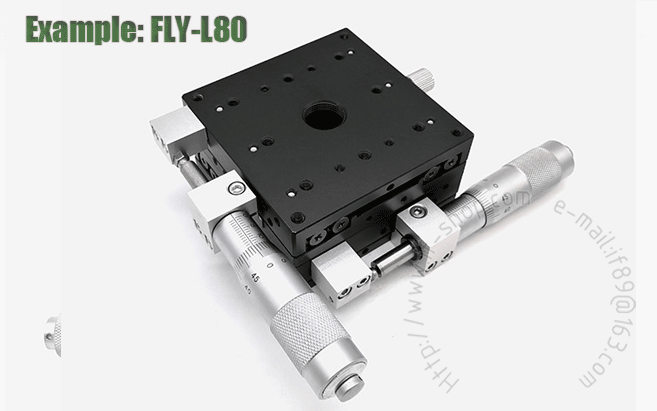

    • FLY-L80 (+0.6kg)

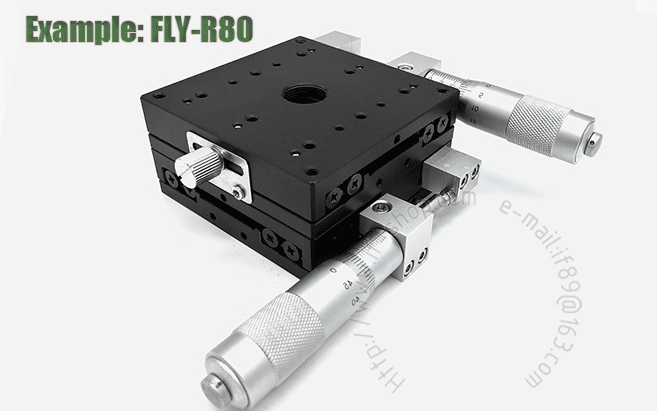

    • FLY-R80 (+0.6kg)
    -+
    (complete orders today,deliverd around 18/10/2024)
    New Products
    Ink cup for pad printer (inner dia:Ø90mm/Ø60mm)
    $128.00  $90.00-30%
    Ink cup for pad printer (inner dia:Ø130mm)
    $193.00  $177.56-8%
    Ink cup for pad printer (inner dia:Ø140mm)
    $200.00  $184.00-8%
    Ink cup for pad printer (inner dia:Ø126mm)
    $180.00
    Details

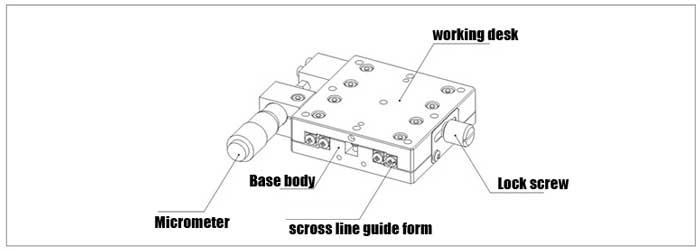

      IF Brand Precise displacement workbench series, Use widely in industrial applications. Such as Precision moving position correction; Laser moving; Testing adjustment; Optical alignment; Optical fiber tuning; Equipment fixture; University research unit for experiment and so on. High precision and smooth movement can be achieved by using cross roller guide. The main materials is aluminium alloy, light weight, suitable for all other devices.All this series workbench with quality-material,high advance manufacturing technology, Full testing for ensure all kind of our products precision higher than our industry standard. IF MACHINERY will supply our comprehensive products with price, over your expected is our business purpose.

     Give us advice and ideas








    SPECIFICATION

    MODEL

    IFLX-L80

    IFLX-R80

    IFLX-C80

    IFLY-L80
    IFLY-R80

    IFLY-C80

    Movement  Direction

    X Horizontal parallet

    X.Y Horizontal parallet

    Body Material

    High-pressure Aluminum ( black)

    Drive mode

    Micrometer

    Table size

    80x80mm

    Table thickness

    20mm

    20mm

    40mm

    40mm

    stroke

     ±12.5mm

    workbench load

    98N(10kgf)

    Parallelism of movement

    ≦0.02mm/25mm

    Micrometer unit

    0.01mm

    Parallelism





    Package Weight

    0.6kg

    0.6kg 1.2kg

    1.2kg

    Levelness 0.03mm 0.06mm



    FLX(Y)-80 Series
