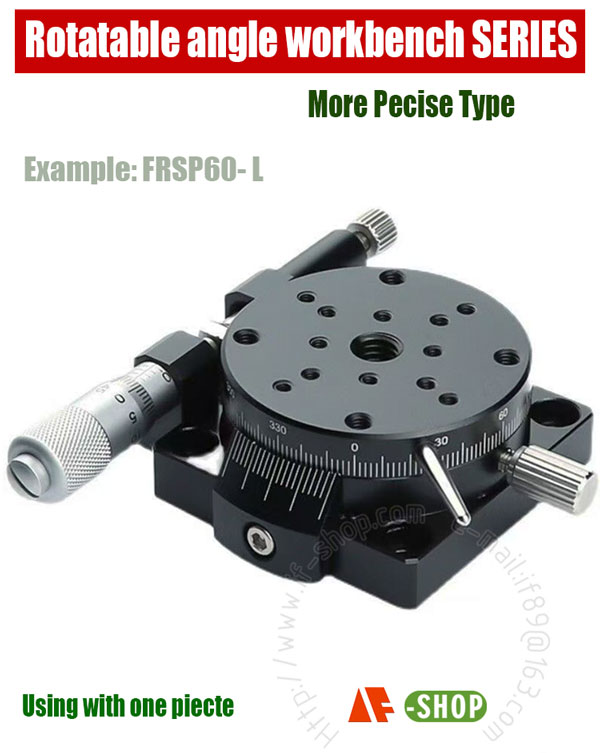

Rotatable Angle workbench series (More Precision type)A

   IF Brand Precise displacement workbench, Use widely in industrial applications.
   Such as Precision moving position correction;  Laser moving; Testing adjustment; Optical alignment; Optical fiber tuning; Equipment fixture; University research unit for experiment and so on.

    All this series workbench with quality-material,high advance manufacturing technology, Full testing for ensure all kind of our products precision higher than oure industry standard. IF MACHINERY will supply our comprehensive products with price, over your expected is our business purpose.

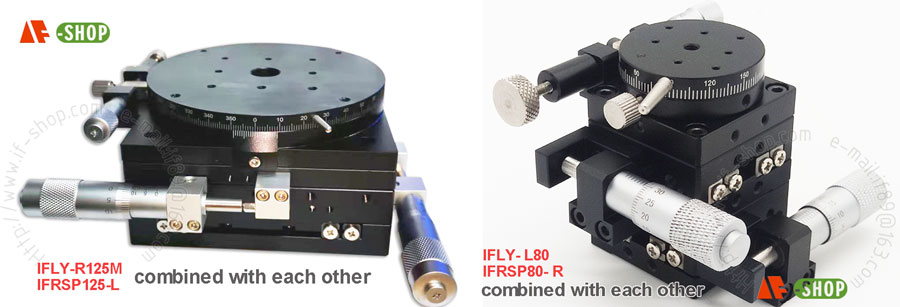

   IF All this series workbench of the same size in the same series can be combined with each other in the X Y Z R direction to complete various displacement tasks you want and achieve unexpected results.

SPECIFICATION

MODEL

IFRSP40-L/R

IFRSP60-L/R

Movement

Direction

Body Material

High-pressure Aluminum ( black)

Drive mode

Micrometer

Table size

(mm)

Φ38

Table

thickness

18mm

stroke

360 ° Rough adjustment / ±5°Fine Adjustment

workbench

load

9.8N(1kgf)

Minimum

scale unit

5′

Micrometer

unit

≈1.44′

Parallelism
(mm)

Weight(kg)

0.25

SPECIFICATION

MODEL

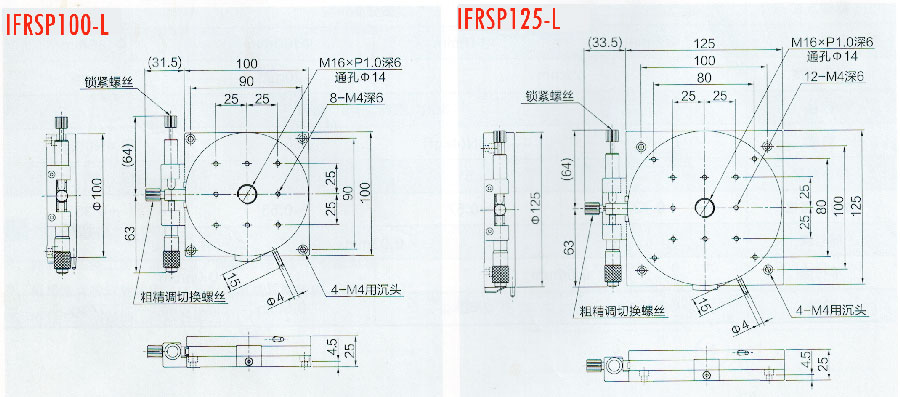

IFRSP100-L/R

IFRSP125-L/R

Movement

Direction

Body Material

High-pressure Aluminum ( black)

Drive mode

Micrometer

Table size

(mm)

Φ100

Table

thickness

25mm

stroke

360 ° Rough adjustment / ±5°Fine Adjustment

workbench

load

39.2N(4kgf)

Minimum

scale unit

5′

Micrometer

unit

≈0.56′

Parallelism
(mm)

Weight(kg)

0.82
