• Manual workbench parallel adjustable series LX(Y) 60mm

    Price:   $45.00

    • Model: FXY60 Serise(bench area60mm)
    • Shipping Weight: 0.6kg
    • 87 Units in Stock
    • Manufactured by: IF MACHINERY


    Please Choose:

    color
    Material

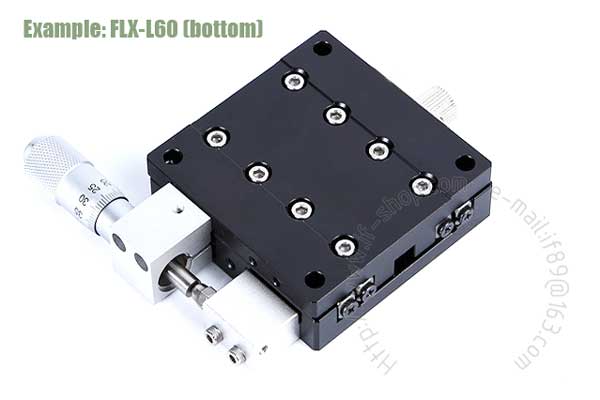

    • FLX-C60
    • FLX-L60

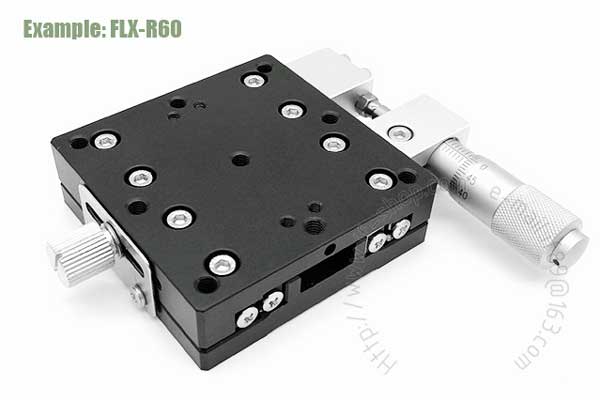

    • FLX-R60

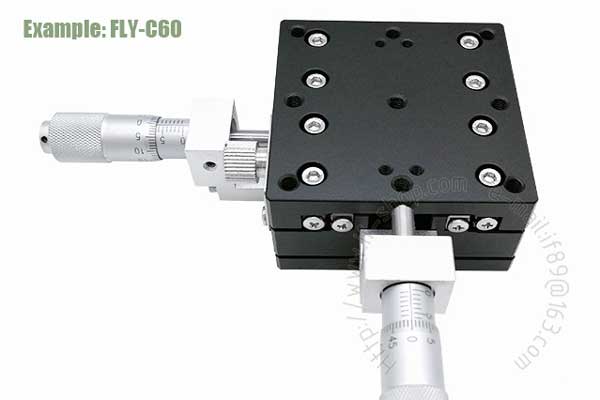

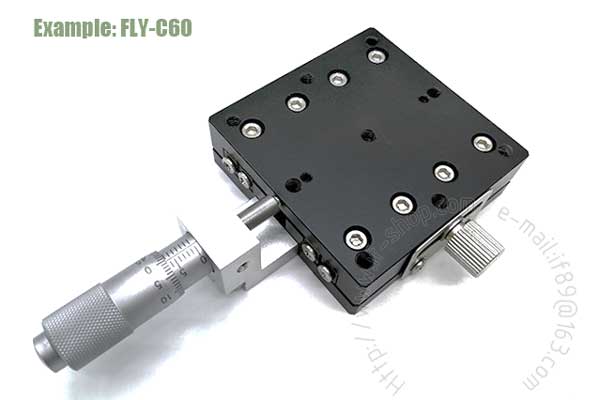

    • FLY-C60 (+0.4kg)

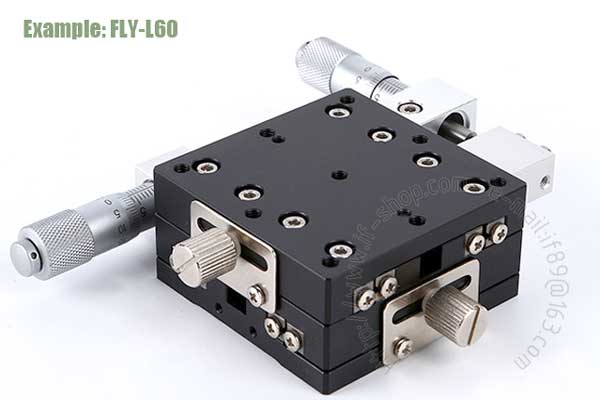

    • FLY-L60 (+0.4kg)

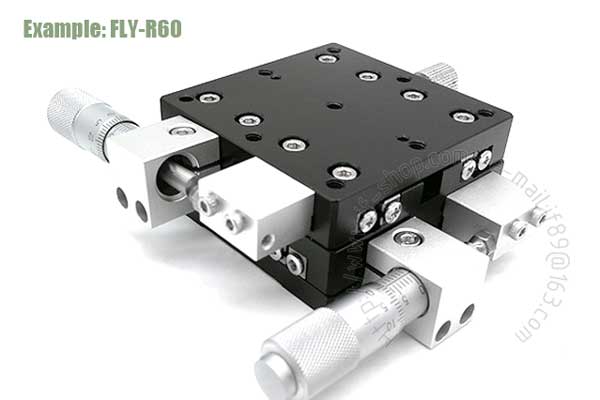

    • FLY-R60 (+0.4kg)
    -+
    (complete orders today,deliverd around 17/12/2024)
    New Products
    Manual workbench parallel adjustable series LX(Y) 100mm
    $73.00
    Manual workbench parallel adjustable series LX(Y) 125mm
    $80.00  $78.40-2%
    Manual workbench parallel adjustable series LX(Y) 90mm
    $70.00
    Manual workbench parallel adjustable series LX(Y) 60mm
    $45.00
    Details

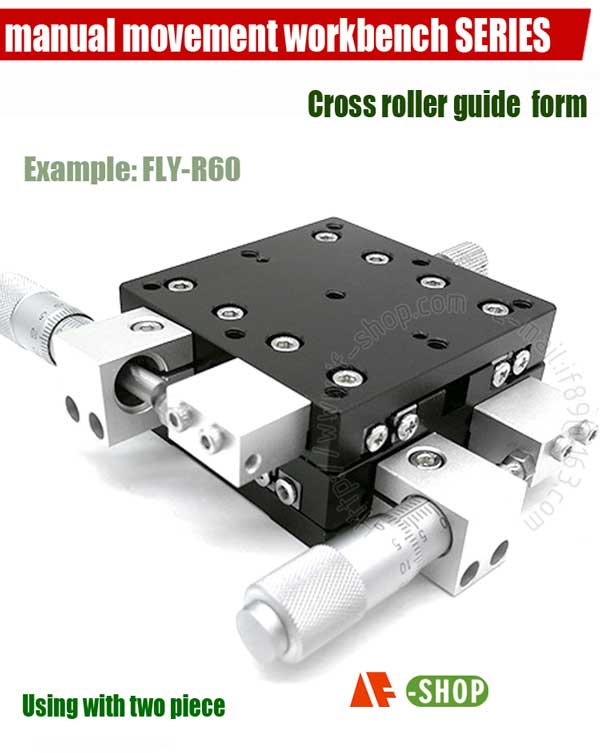

     IF Brand Precise displacement workbench series, Use widely in industrial applications. Such as Precision moving position correction; Laser moving; Testing adjustment; Optical alignment; Optical fiber tuning; Equipment fixture; University research unit for experiment and so on. High precision and smooth movement can be achieved by using cross roller guide. The main materials is aluminium alloy, light weight, suitable for all other devices.All this series workbench with quality-material,high advance manufacturing technology, Full testing for ensure all kind of our products precision higher than our industry standard. IF MACHINERY will supply our comprehensive products with price, over your expected is our business purpose.

     Give us advice and ideas








    SPECIFICATION

    MODEL

    IFLX-L60

    IFLX-R60

    IFLX-C60

    IFLY-L60
    IFLY-R60

    IFLY-C60

    Movement  Direction

    X Horizontal parallet

    X.Y Horizontal parallet

    Body Material

    High-pressure Aluminum ( black)

    Drive mode

    Micrometer

    Table size

    60x60mm

    Table thickness

    18mm

    18mm

    36mm

    36mm

    stroke

     ±6.5mm

    workbench load

    49N(5kgf)

    Parallelism of movement

    ≦0.001mm

    Micrometer unit

    0.01mm

    Parallelism



    Weight

    0.4kg

    0.4kg 0.8kg

    0.8kg

    Levelness 0.03mm

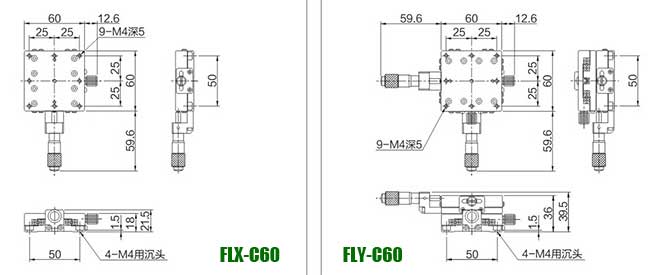

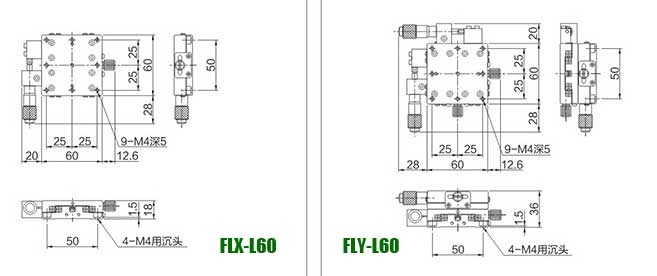

    FLX(Y)-60 Series
