manual Rotating flatform series|IFRS-25/40/60 Series|Rotatable manual workbench

Details

Precise displacement workbench, Use widely in industrial applications.
Such as Precision moving position correction; Laser moving; Testing adjustment; Optical alignment; Optical fiber tuning; Equipment fixture; University research unit for experiment and so on.

All this series workbench with quality-material,high advance manufacturing technology, Full testing for ensure all kind of our products precision higher than oure industry standard. IF MACHINERY will supply our comprehensive products with price, over your expected is our business purpose.

Give us advice and ideas

SPECIFICATION
MODEL	IFRS-25MM	IFRS-40MM	IFRS-60MM
Body Material	High-pressure Aluminum ( black)
Drive mode	Manual movement
Table size(mm)	Φ25mm	Φ40mm	Φ60mm
Whole High	12.5mm	20mm	25mm
stroke	360°
workbench load	29.4N(3KG)	49N(5KG)	68.6N(7KG)
Parallelism of movement	0.005mm
Package Weight	0.03KG	0.08KG	0.25KG
Min movement	5°	2°	1°

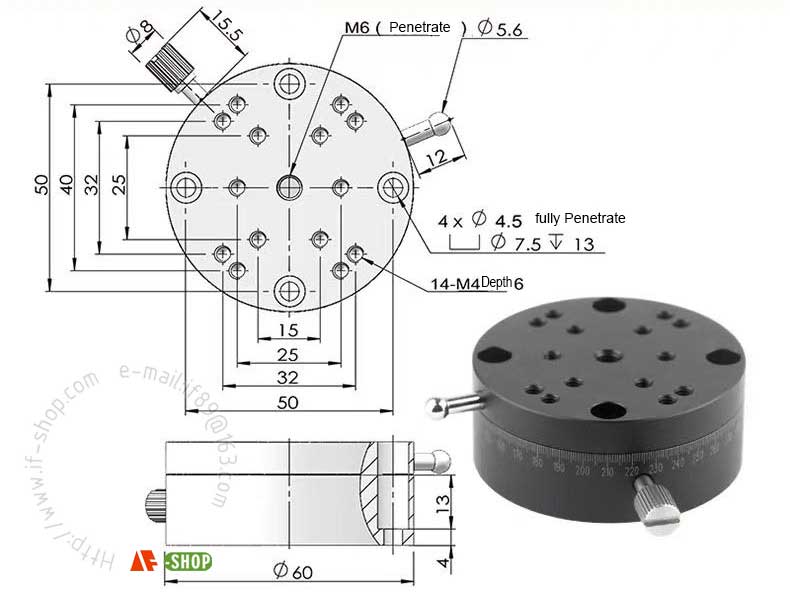

--IFRS-60MM---

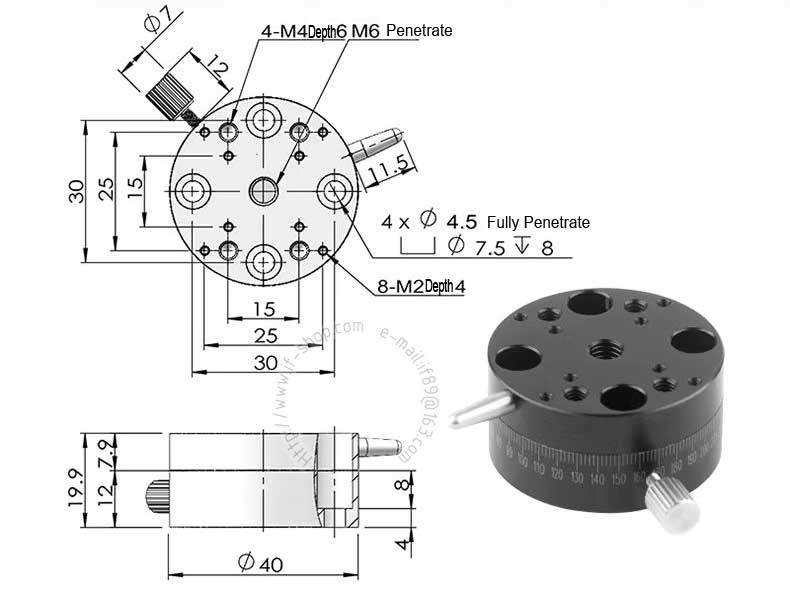

--IFRS-40MM---

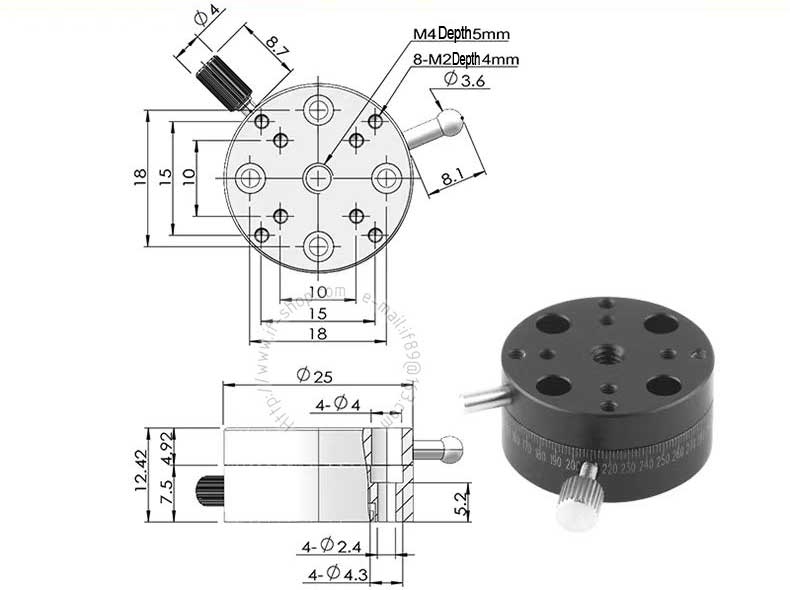

--IFRS-25MM ---
