IF Brand Precise displacement workbench, Use widely in industrial applications.
All this series workbench with quality-material,high advance manufacturing technology, Full testing for ensure all kind of our products precision higher than oure industry standard. IF MACHINERY will supply our comprehensive products with price, over your expected is our business purpose. |
| Give us advice and ideas |

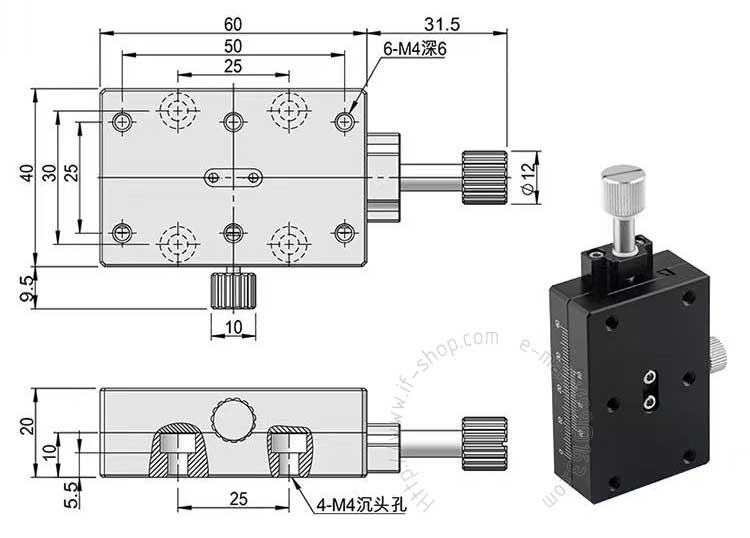

| -- FLX-L4060 -- |
 |

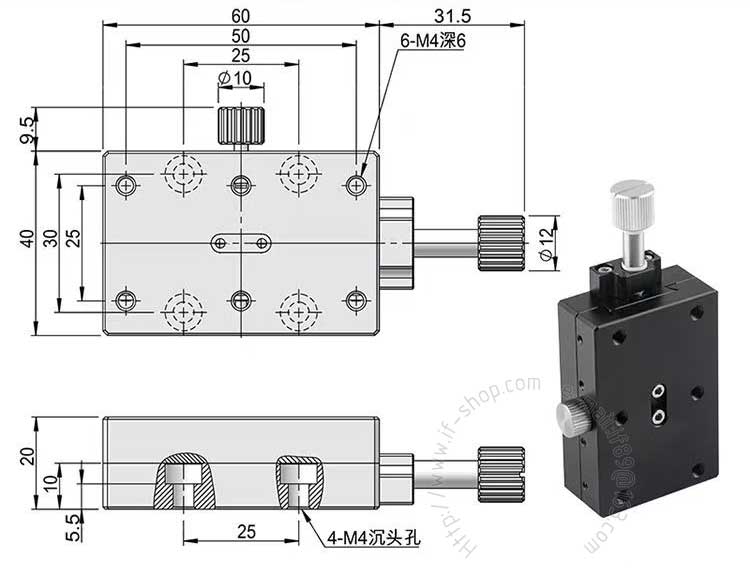

| -- FLX-R4060 -- |
 |

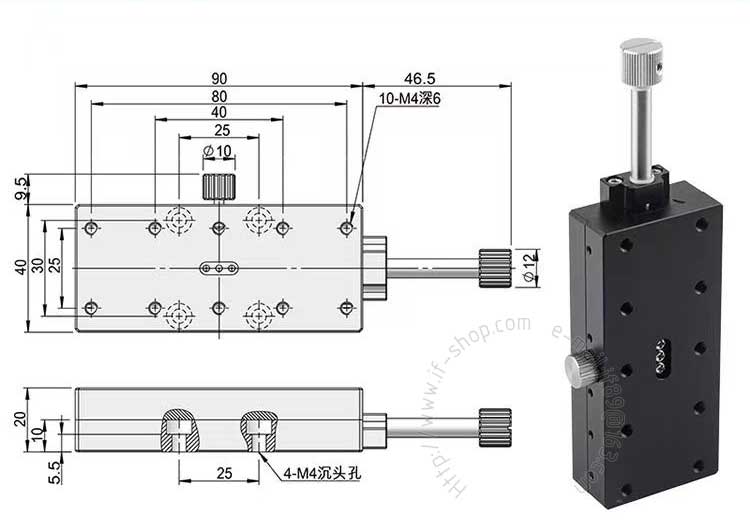

| -- FLX-R4090 -- |
 |

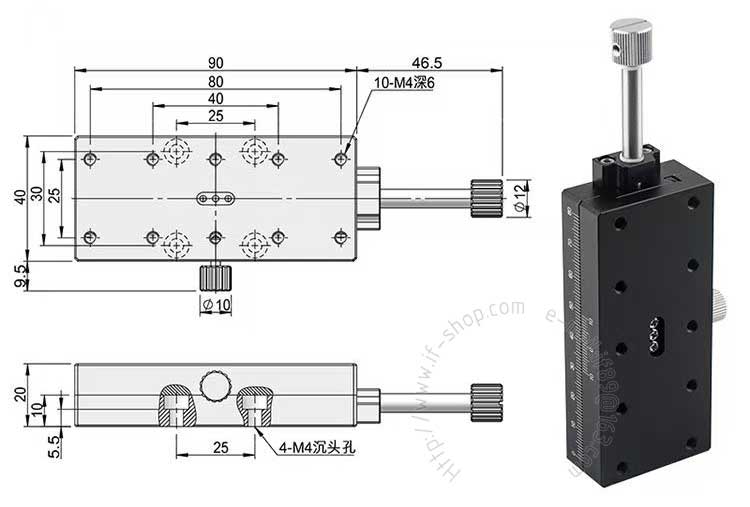

| -- FLX-L4090 -- |
 |
|
SPECIFICATION |
||||
|
MODEL |
IFLX-L4060 |
IFLX-R4060 |
IFLX-L4090 |
IFLX-R4090 |
|
Movement Direction |
X Horizontal parallet |
X Horizontal parallet | ||
|
Body Material |
High-pressure Aluminum ( black) |
|||
|
Drive mode |
MANUAL (dovetail ) |
|||
|
Table size |
40x60mm |
40x90mm | ||
|
Table thickness |
20mm |
20mm |
20mm |
20mm |
|
stroke |
±20mm |
±35mm | ||
|
|
|
|||
|
|
|
|||
|
MIN unit |
1mm |
|||
|
Parallelism |
0.02mm |
0.02mm | ||
|
Weight |
0.22kg |
0.25kg | ||
| platform load | 29.4N(3KGf) | 39.2N(4KGf) | ||
